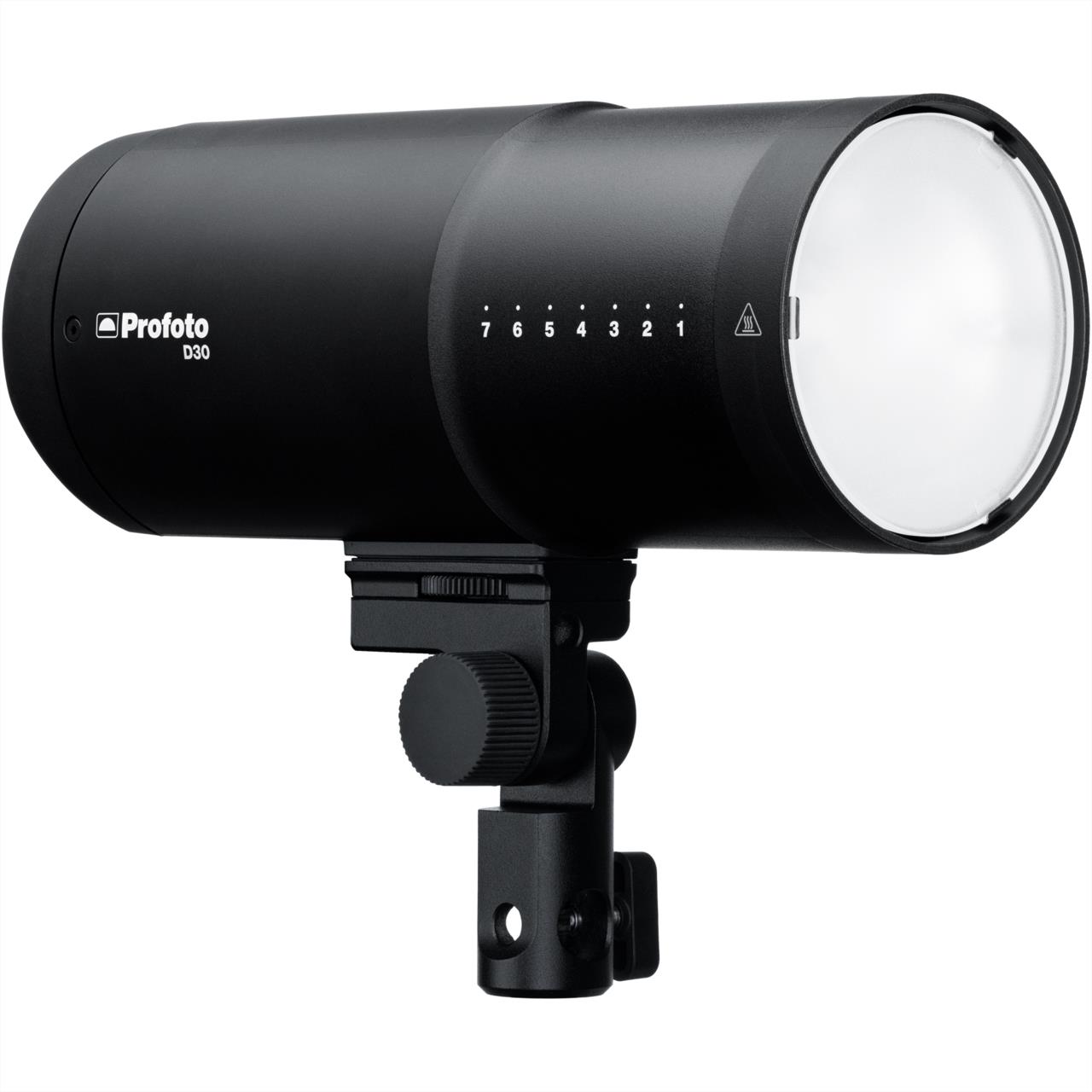

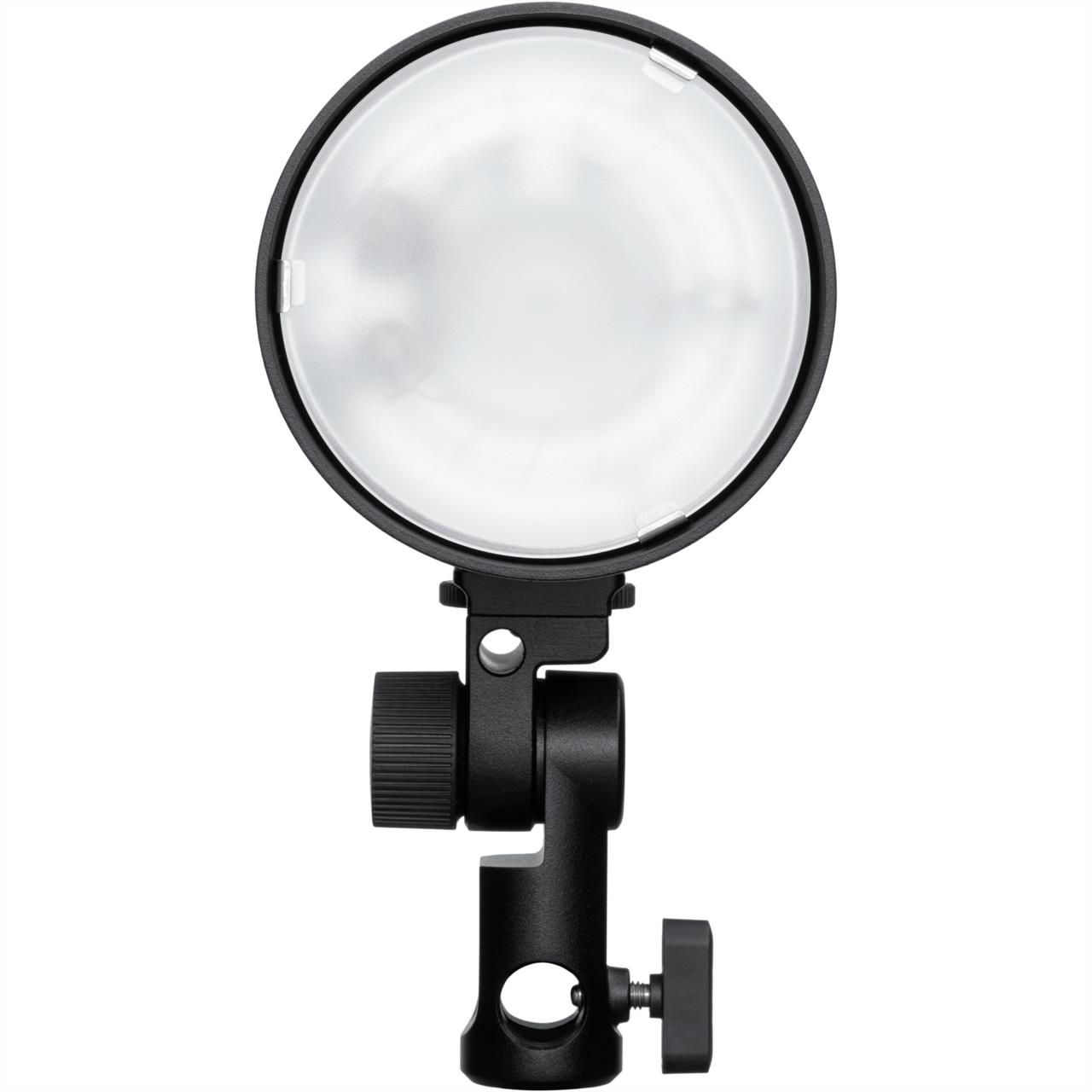

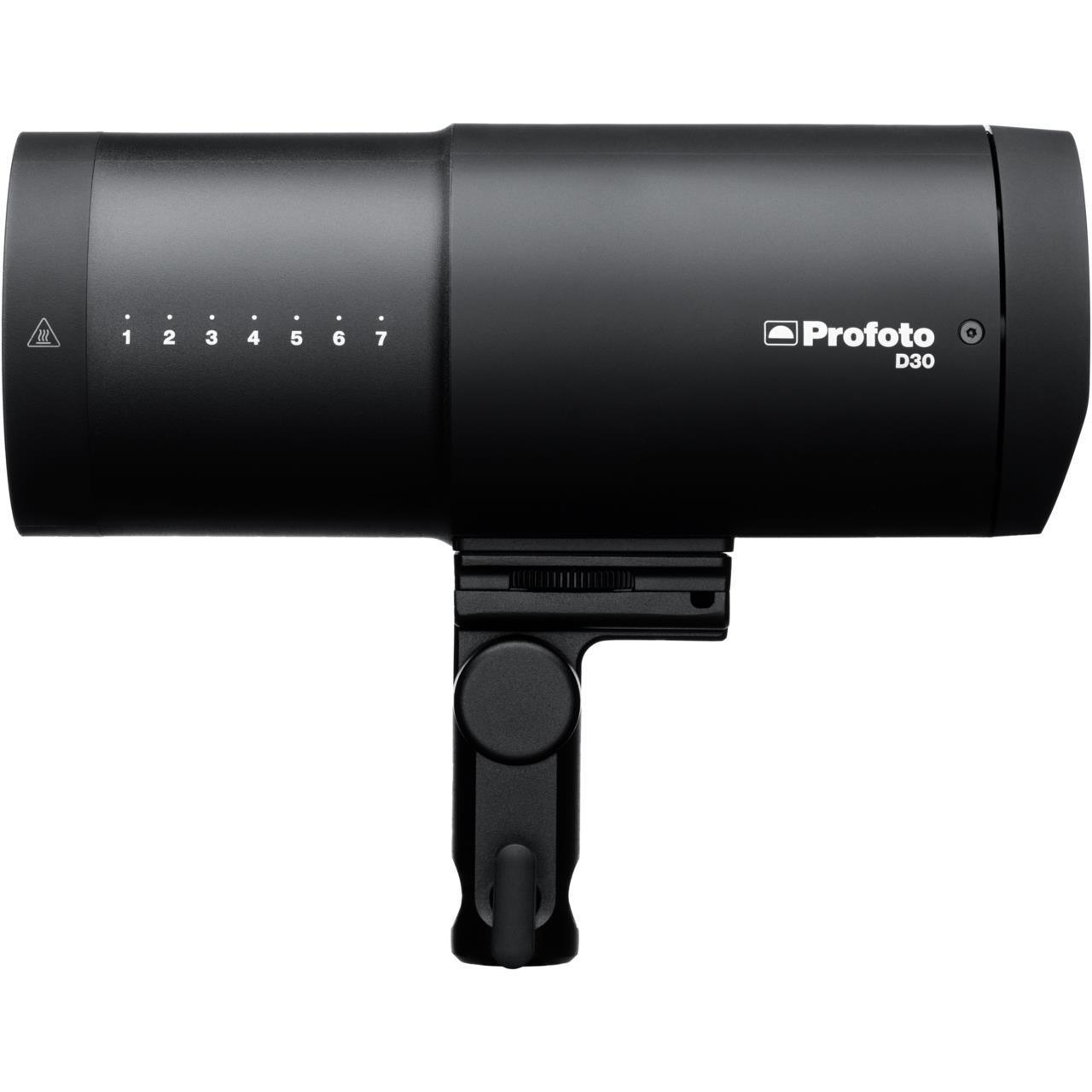

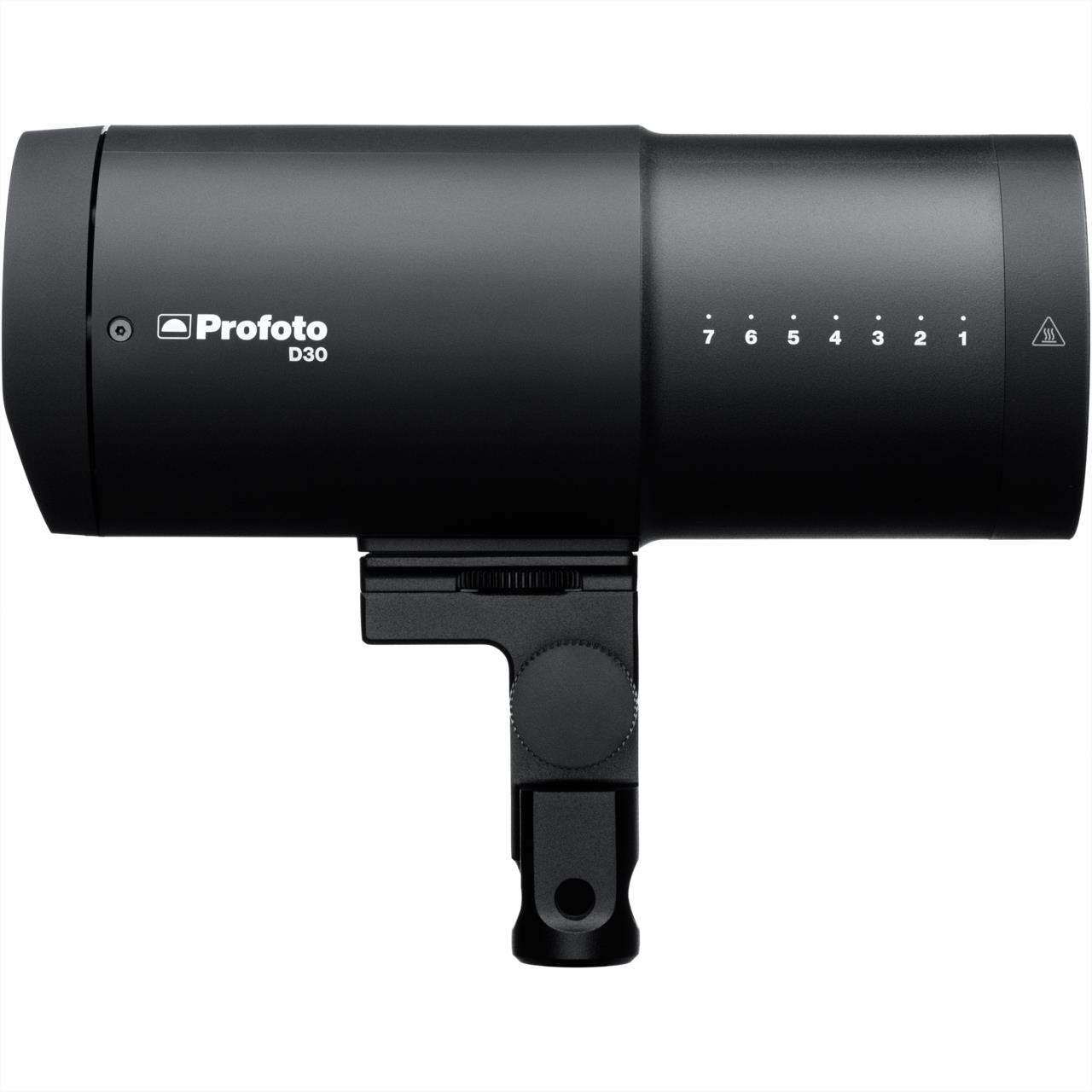

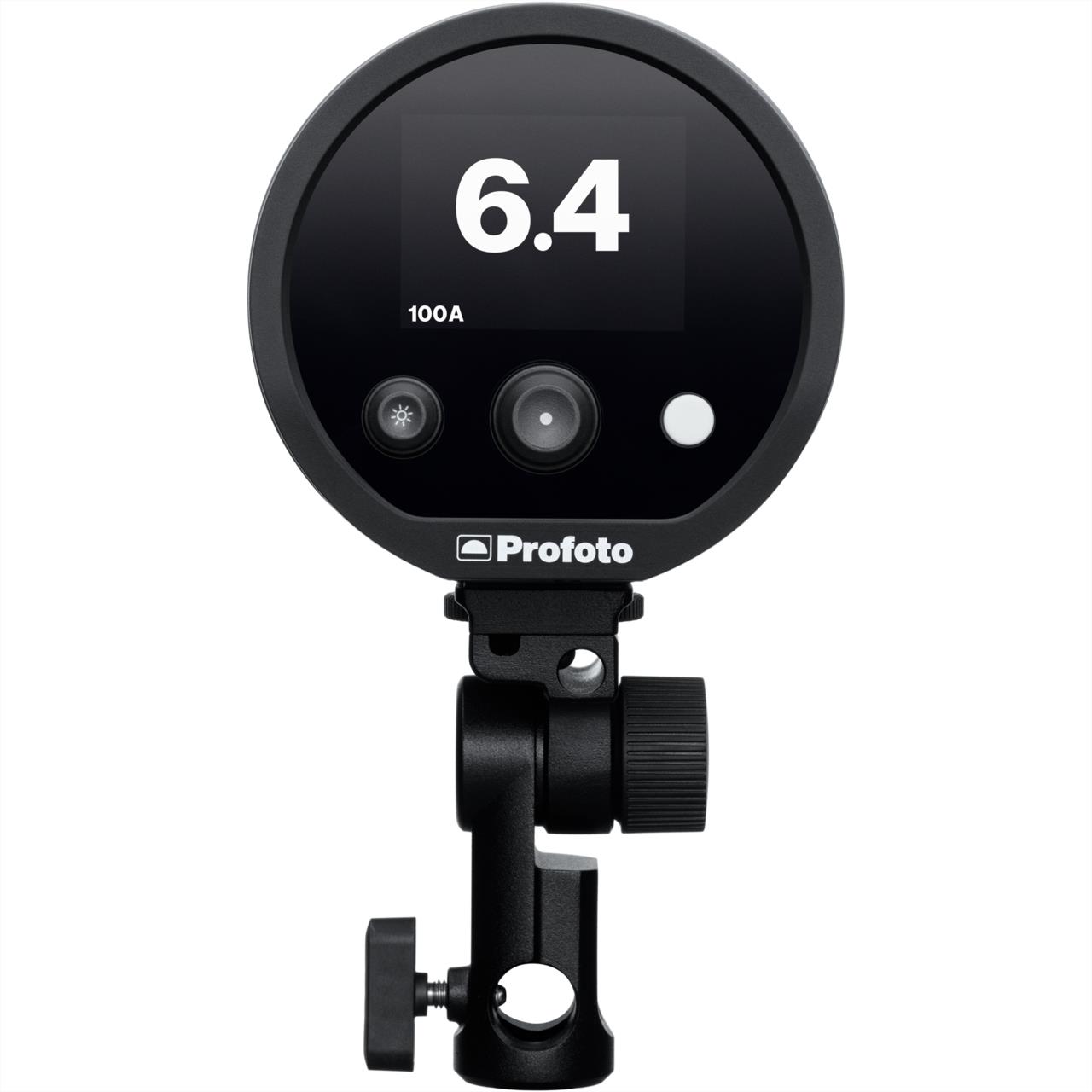

Profoto D30

Overview

• Product name:

  Profoto D30

• Product number

  330245

• Regulatory model

  PCA1610

Flash

• Max energy

  500 Ws

• Energy range

  11 f-stops (0.5 - 500 Ws)


• Energy control increments

  0.1 f-stops (0.1-10)

• Recycling time

  230V / 50Hz: 0.01-0.7 s
  200V / 50Hz: 0.01-0.6 s
  120V / 60Hz: 0.01-0.8 s
  100V / 50Hz: 0.01-0.9 s

• Energy stability

  <0.03 f-stop at energy 3.0-10
  <0.06 f-stop at energy 0.1-2.9

• Flash modes

  Eco (Normal), Boost and Freeze

• Flash duration t0.1

  Eco mode: 1/300 s (10) - 1/5000 s (0.1)
  Boost mode: 1/300 s (10) - 1/6200 s (0.1)
  Freeze mode: 1/300 s (10) - 1/9800 s (0.1)

• Flash duration t0.5

  Eco mode: 1/900 s (10) - 1/10700 s (0.1)
  Boost mode: 1/900 s (10) - 1/13800 s (0.1)
  Freeze mode: 1/900 s (10) - 1/21100 s (0.1)

• Color temperature

  Eco mode: 6000K +-100K
  Boost mode: 6000K +-100K
  Freeze mode: 6000K (10) - 9000K (0.1)

• F-stop @ 2m / 100 ISO

  Bare: 16 7/10
  OCF Magnum: 32 3/10
  Magnum: 32 9/10

• Beam angle

  66°

• Field angle

  111°

Continuous light

• Lamp type

  LED

• Max luminous flux (lumen)

  3,800 lm

• Max illuminance @ 1meter (lux)

  Bare: 1500 lx
  OCF Magnum: 7300 lx
  Magnum: 6800 lx

• Dimming range

  100-10 %

• Color temperature

  2,800 - 7,000 K ±500 K

• Color rendering index (CRI)

  >94

• Beam angle

  63°

• Field angle

  105°

• Max power

  35 W

Wireless connectivity

• Built-in connectivity

  Profoto AirX

• Frequency band

  2.4 GHz

• Supported Air functions

  Sync, TTL, HSS, Remote control (Air 1 and Air 2)

• Number of Air channels

  100 (1-100)

• Number of groups per Air Channel

  6 (A-F)

• Wireless operating range

  With Profoto remotes: 0.5 - 100 m (1.5- 330 ft)*
  With Bluetooth devices: 0.1- 30 m (0.3-90 ft)
  * in optimal conditions up to 300 m (1000 ft)

• Supported apps for Bluetooth devices

  Profoto Camera and Profoto Control apps

Connectors

• Sync

  1 x 3.5 mm socket (mini-phone)

• Other

  USB-C service port

Powering

• Power supply

  AC 100-240V 50/60Hz

• Mains fuse requirement

  10 A

Other

• Firmware update

  via USB-C or Bluetooth

• Photocell/IR-slave

  Yes

• Stand adapter

  Yes for standard 5/8 studs

• Umbrella mount

  Yes (in stand adapter)

• Operation temperature

  0 °C to +35 °C
  +32 °F to +95 °F

• Storage temperature

  Store in normal indoor conditions

Measurements

• Width

  11 cm / 4.3 in

• Length

  25.5 cm / 10 in

• Height

  16 cm / 6.3 in with stand adapter
  11 cm / 4.3 in without stand adapter

• Weight

  2.1 kg / 4.7 lb with stand adapter
  1.85 kg / 4.1 lb without stand adapter

  Optional handle is sold separately.
  The handle weight is 104 grams (3.7 oz)
